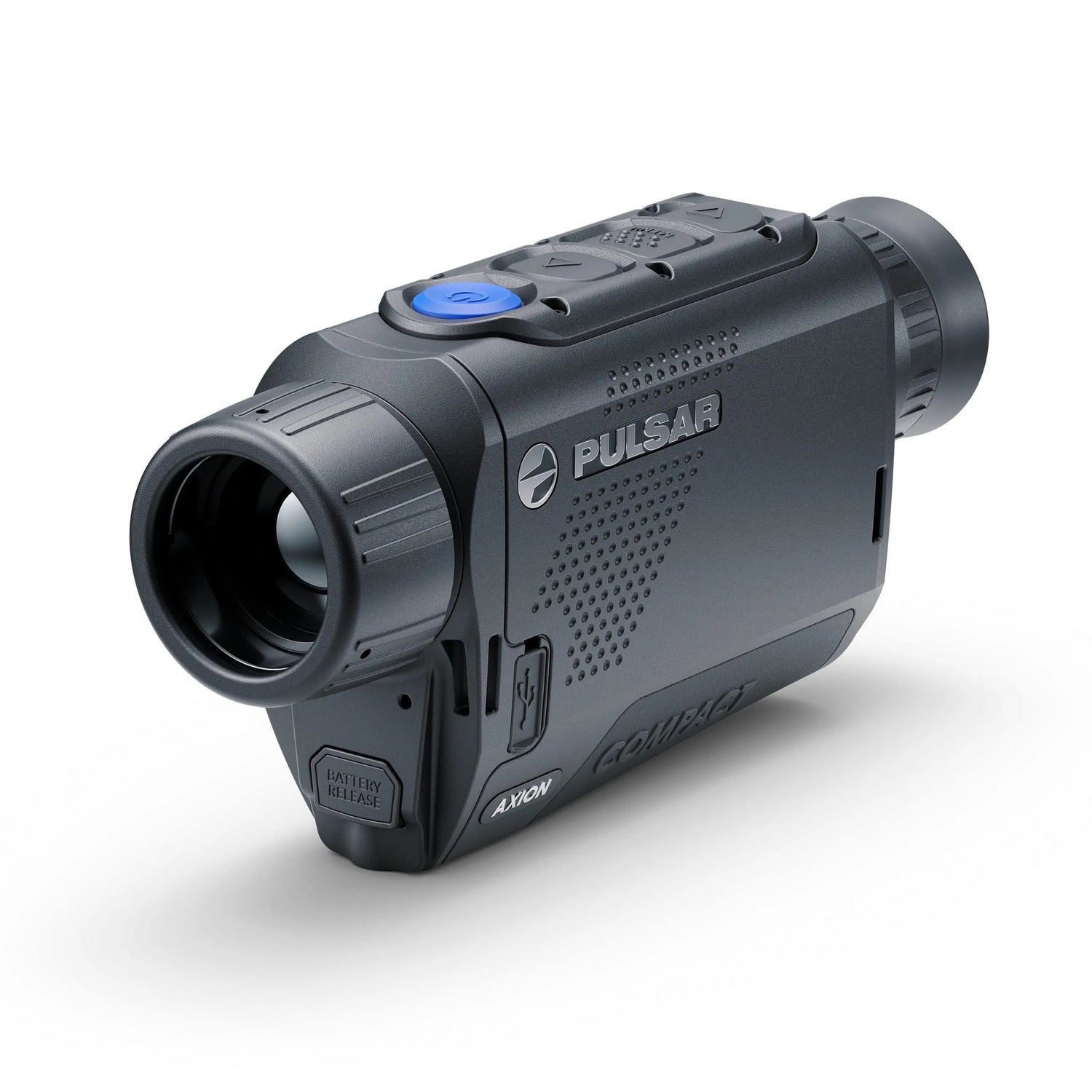

PULSAR AXION COMPACT XQ19 THERMAL MONOCULAR

The Pulsar Axion XQ19 Compact is a lightweight, pocket-sized thermal monocular offering impressive performance and features in an affordable package.  This unit is equipped with a 384 × 288, 17µm <18 mK NETD thermal sensor combined with a 19mm F/1.0 Germanium objective lens which delivers a base magnification of 1.5x.  This sensor and optic combination, paired with a high-resolution 640 × 400 AMOLED display, provides sharp, detailed thermal images for detection and observation in a variety of environments.

The Axion XQ19 Compact features a magnesium alloy housing that is IPX7 waterproof-rated and is designed to withstand harsh outdoor conditions while keeping weight to a minimum.  It is powered by a removable APS-3 rechargeable lithium battery, which allows for up to 8 hours of operating time on a single charge.  Additionally, external USB-C power can also be utilized for extended use.

Other notable features of the Axion XQ19 Compact include onboard image and video recording with 64GB of internal memory, Wi-Fi support with Pulsar’s Stream Vision 2 mobile app, multiple color palettes, image optimization modes, and simple ergonomic controls.  It can also be attached to a camera tripod or other applications via a 1/4” threaded adapter.  Weighing in at a just over half a pound, it delivers all this performance in an ultra-compact, lightweight package at an affordable price.

Features

384 × 288 Resolution

17µm Pixel Pitch

<18 mK NETD Thermal Sensitivity

50 Hz Frame Rate

1.5-6.0x Magnification

640 × 400 AMOLED Display

19mm F/1.0 Germanium Objective Lens

19.5° Field of View

820 Yard Detection Range

User Adjustable Image Optimization

Onboard Image / Video Recording (64 GB)

Onboard Wi-Fi Transmission with 2.4 and 5 GHz Waveband Support

Compatible with iOS and Android devices via the Pulsar Stream Vision 2 App

APS-3 Rechargeable Lithium Battery (8 Hours)

External Power via USB-C Connection

Dual-band WiFi (2.4/5GHz) with Stream Vision 2 app compatibility

High-Quality, Rugged Magnesium Alloy Housing

IPX7 Waterproof Rating

1/4” Tripod Mount

5-Year Pulsar Factory Warranty (with Registration)

Pulsar Part Number: PL77517

Items Included

Pulsar Axion XQ19 Compact Thermal Monocular

APS-3 Rechargeable Lithium Battery

USB-C Cable with Power Adapter

Carrying Case

Hand Strap

Cleaning Cloth

Instruction Manual

Soft Carry Case

Warranty Card
