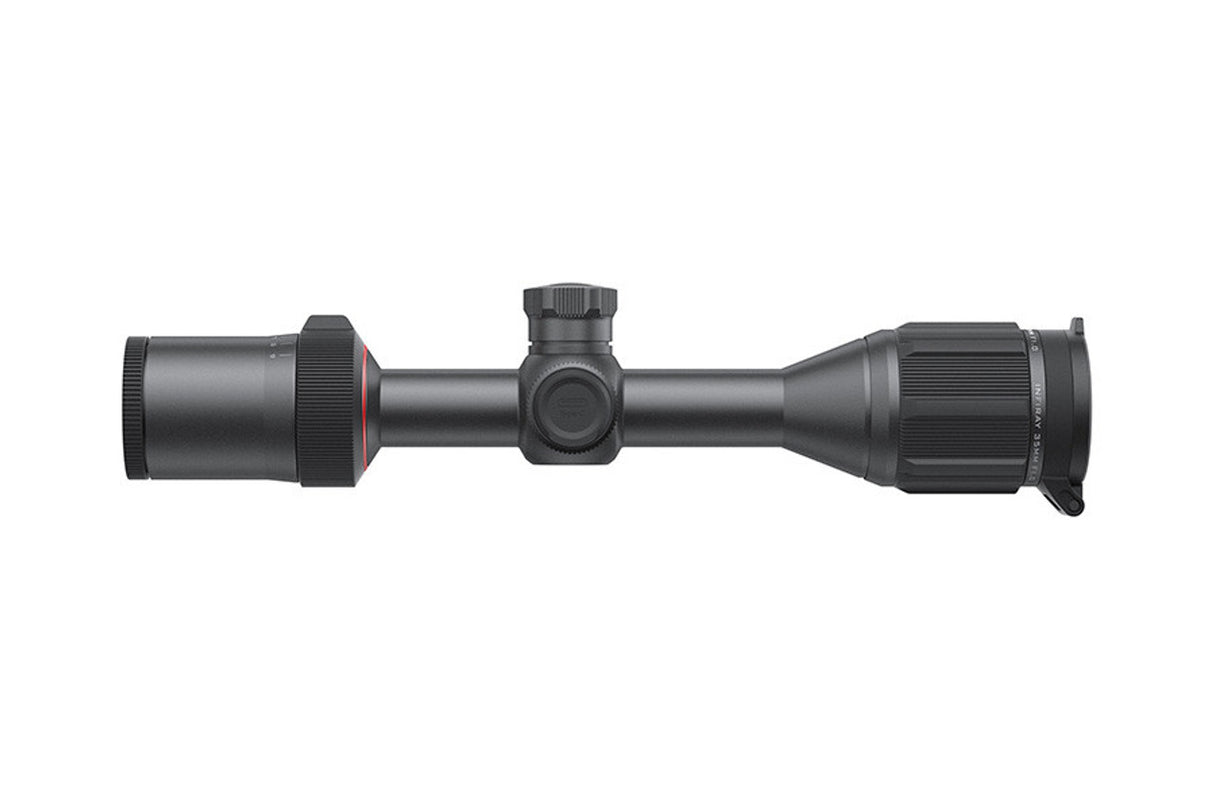

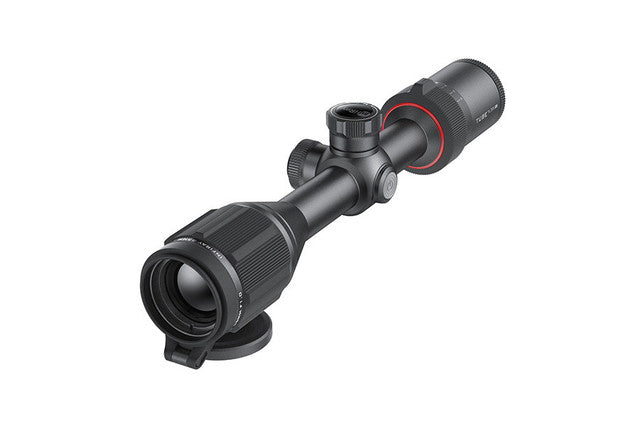

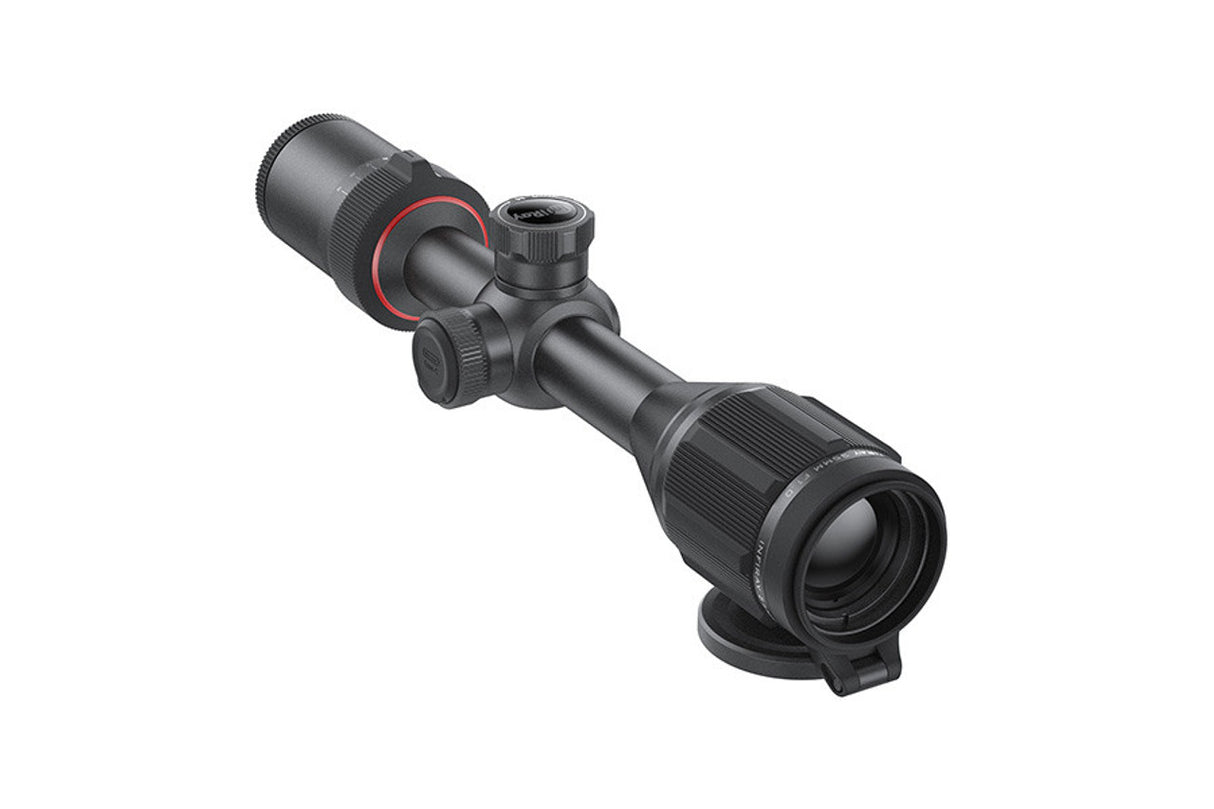

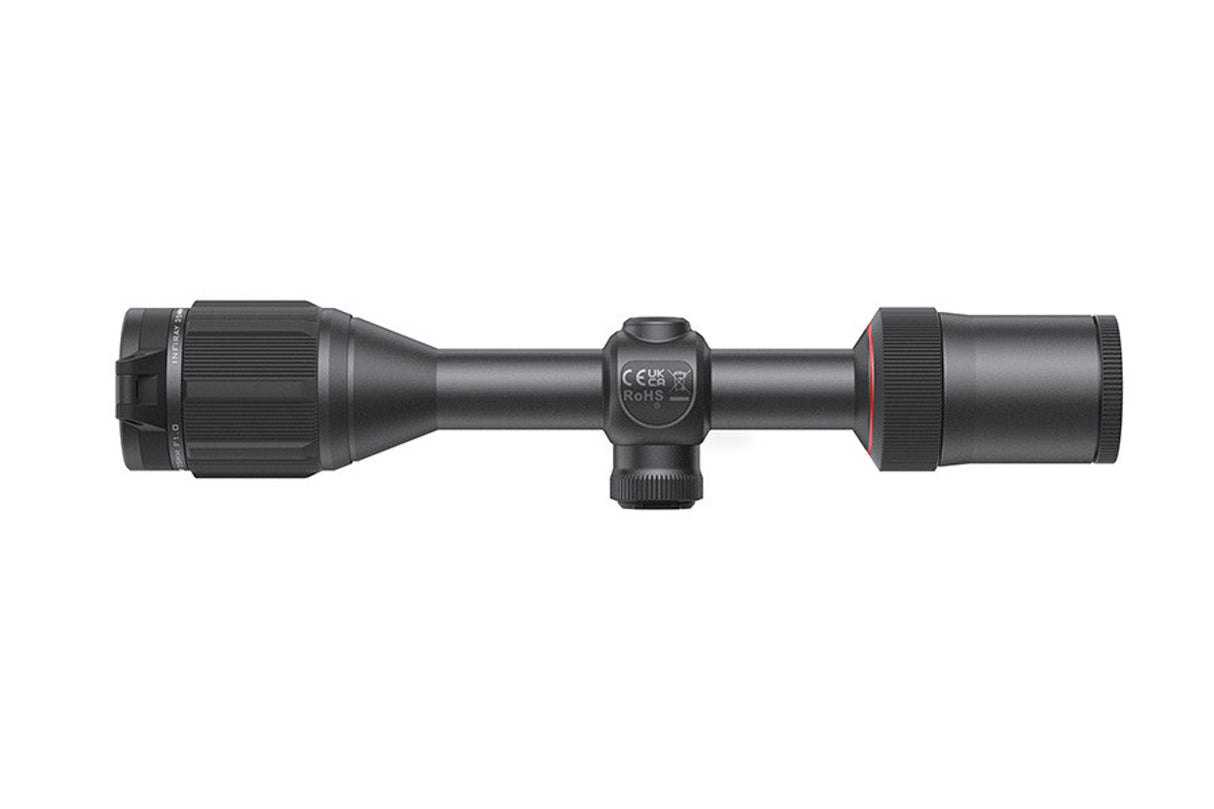

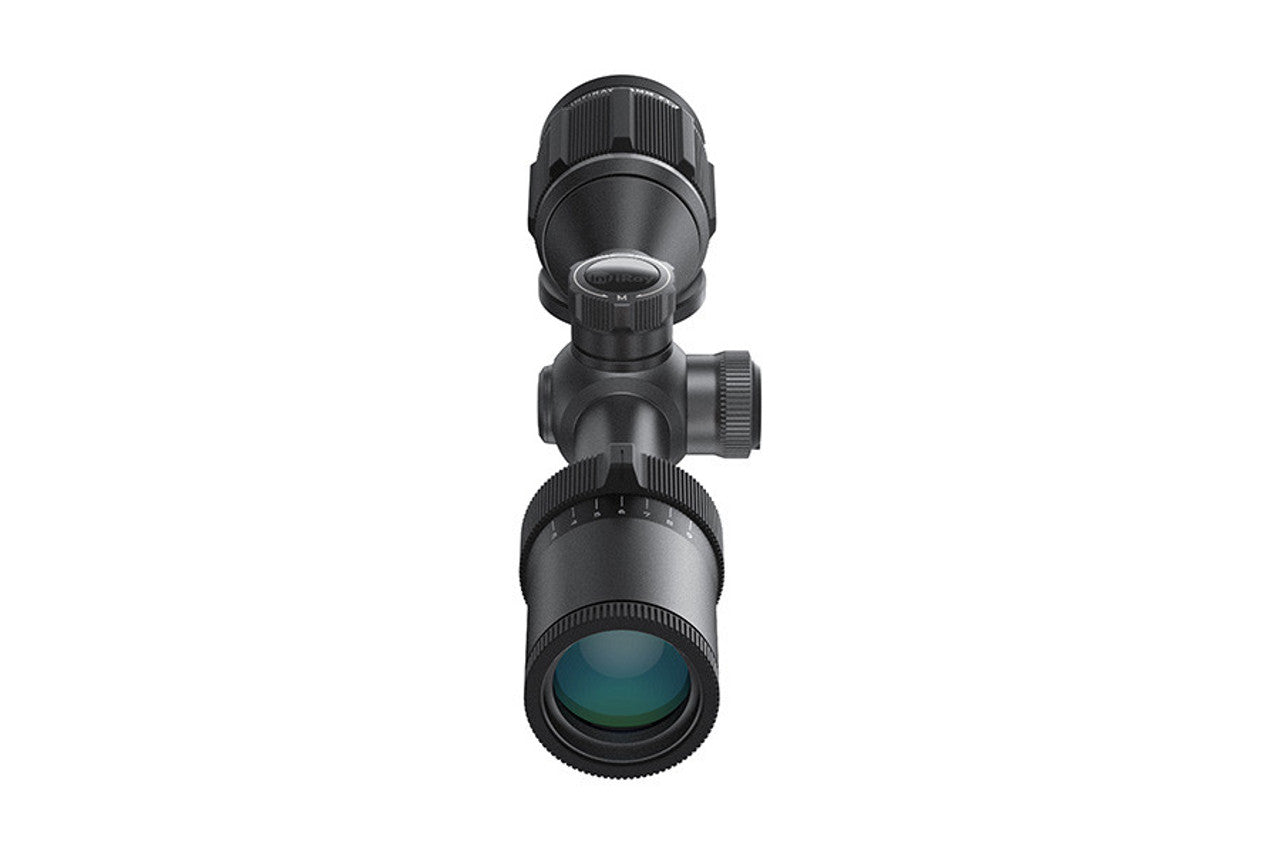

INFIRAY TL25 SE THERMAL RIFLE SCOPE
INFIRAY TL25 SE THERMAL RIFLE SCOPE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Adventure Camping & Fishing offers the following shipping options via Australia Post:
- Free shipping for orders over $150
- Standard shipping: $15
Can't find what you're looking for? Give us a call on (03) 5722 4622.
Description
Description
TUBE SE retains most of the highly recognised features of TUBE series in a surprisingly compact body with a lighter weight of only 750g. It also adopts a zoom ring to adjust magnification, a Bluetooth LRF to provide precise distance measurement and a controller instead of buttons. TUBE SE is sure to bring you an all-round easier experience.
-
TUBE SE is equipped with the 12um sensor with NETD <25mK, which is lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.
-
TUBE SE has a body that only weighs 750g which is 28% less compared to the normal 1kg thermal riflescope.
-
TUBE SE adopts a zoom ring to adjusting magnification which is consistent with the using habit of the day scope. The zoom ring is made of silicone material, which is soft and comfortable, easy to twist and anti-slip.
-
Over 90% functions can be completed by the controller of TUBE SE, the operation is simplified and to bring your more convenience during the night.
-
TUBE SE is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.
-
The working time of TUBE SE is up to 8 hours to keep your hunting going all night, so you don't need to take the power pack and extra charging accessories.
-
TUBE SE is equipped with a MIC function, therefore customers can record the voice when recording.
TUBE SE - Product Specifications;
Model |
TP25 SE |
TL25 SE |
TL35 SE |
Thermal Sensor
|
256 x 192
|
384 x 288
|
384 x 288
|
Objective lens
|
25 | 25 | 35 |
Magnification, x
|
4.0x (1x-2.5x digital)
|
2.0x (1x-4x digital)
|
3.0x (1x-3x digital)
|
Field of view (HxV), degrees / m @ 100mtrs
|
7.0 x 5.0 | 10.5 x 7.4 | 7.5 x 5.3 |
Detection range, m
|
1300
|
1300
|
1800
|
Sensor (Thermal)
|
|||
Type
|
uncooled vox
|
uncooled vox
|
uncooled vox
|
Resolution, pixels
|
256 x 192
|
384 x 288
|
384 x 288
|
Pixel Pitch
|
12 um
|
12 um
|
12 um
|
NETD
|
<30 mK
|
<25 mK
|
<25 mK
|
Frame rate, Hz
|
50
|
50
|
50
|
Optics
|
|
|
|
Objective lens
|
25 | 25 | 35 |
Magnification, x
|
4.0x (1x-2.5x digital)
|
2.0x (4x zoom)
|
3.0x (4x zoom)
|
Field of view (HxV), degrees / m @ 100mtrs
|
7.0 x 5.0 | 10.5 x 7.4 | 7.5 x 5.6 |
Display
|
|
|
|
Resolution, pixels
|
1536 x 1080 AMOLED | 1536 x 1080 AMOLED | 1536 x 1080 AMOLED |
Thermal Palettes
|
White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour | White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour | White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour |
Range Performance
|
|
|
|
Detection range (person), m
|
1300
|
1300
|
1800
|
Laser Rangefinder
|
(optional)
|
(optional)
|
(optional)
|
Safety class for laser equipment according to IEC 60825-1:2014
|
-
|
-
|
-
|
Wavelength, nm
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
Max. measuring range, m
|
1000
|
1000
|
1000
|
Measurement accuracy, m
|
+/- 1
|
+/- 1
|
+/- 1
|
Min. Measuring Range, m
|
-
|
-
|
-
|
Reticle
|
|
|
|
Picture in Picture
|
Yes (2x magnified)
|
Yes (2x magnified)
|
Yes (2x magnified)
|
Number of preloaded reticles
|
6 (in 4 colours)
|
6 (in 4 colours)
|
6 (in 4 colours)
|
Number of Zero Profiles available
|
3
|
3
|
3
|
Bluetooth Connection
|
supported
|
supported
|
supported
|
Video Recorder
|
Video & Snapshot
(32Gb storage)
+ Audio recording
+ Recoil Activated
|
Video & Snapshot
(32Gb storage)
+ Audio recording
+ Recoil Activated
|
Video & Snapshot
(32Gb storage)
+ Audio recording
+ Recoil Activated
|
Environmental Characteristics
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 | IP67 |
Power Supply
|
|
|
|
Output voltage, V
|
-
|
-
|
-
|
Battery type
|
1x 18650 internal (3350mAh) | 1x 18650 internal (3350mAh) | 1x 18650 internal (3350mAh) |
Operating time on battery pack (at t=22°C), h *
|
11
|
11
|
11
|
External power supply, V
|
5V (USB Type-C)
|
5V (USB Type-C)
|
5V (USB Type-C)
|
Connections and Compatibilities
|
|
|
|
Max. recoil power on firearm
|
6000 joules | 6000 joules | 6000 joules |
Mounting brackets on firearm
|
1" rings (30mm) | 1" rings (25.4mm) | 1" rings (25.4mm) |
Weight & Size
|
|
|
|
Dimensions, mm
|
310 x 70 x 70 | 310 x 70 x 70 | 310 x 70 x 70 |
Weight, kg
|
< 0.720
|
< 0.720
|
< 0.720
|
Warranty
|
3 years
|
3 years
|
3 years
|
Trade Data
|
|
|
|
SKU (Model #)
|
TP25 SE | TL25 SE | TL35 SE |
