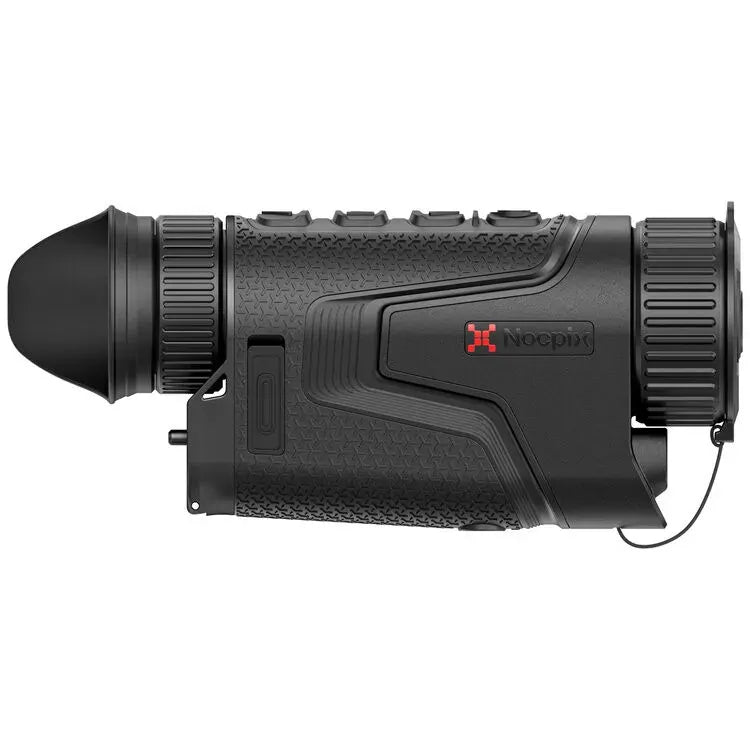

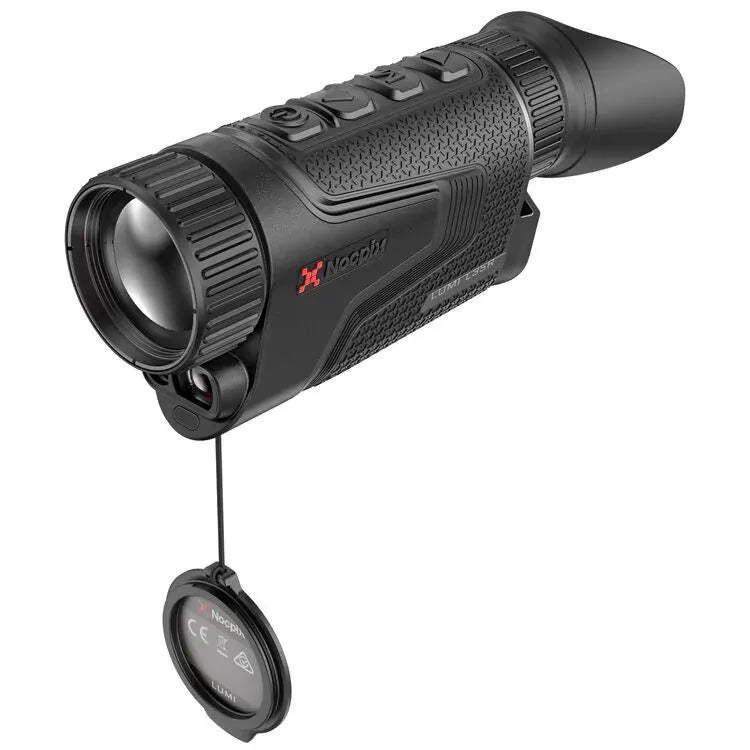

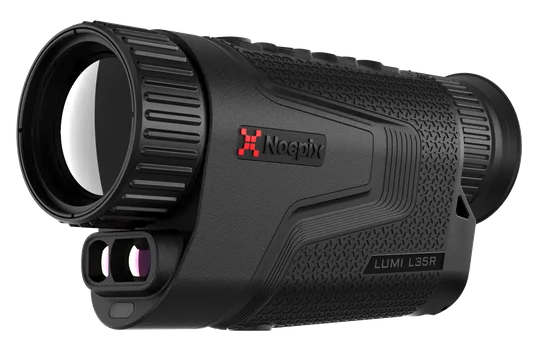

NOCPIX LUMI L35R LRF THERMAL MONOCULAR

The Nocpix Lumi LRF L35R Thermal Monocular combines advanced thermal imaging technology with an integrated 800m laser rangefinder (LRF), all in a device smaller than a cellphone. Compact, powerful, and highly portable, the Lumi LRF Series delivers outstanding performance for hunting, tactical, and outdoor applications.

Built around a self-developed 384px thermal sensor with 12μm pixel pitch and NETD <18mK sensitivity, the Lumi ensures superior imaging even in harsh environments. The F0.9 large-aperture lens captures 20% more light than standard F1.0 optics, producing brighter, sharper visuals. Enhanced by Reality+ AI algorithms and electronic image stabilization, the device guarantees stable, noise-free imaging with improved contrast and clarity.

The Lumi LRF is also packed with features designed for user comfort and convenience. Silent operation buttons ensure no disturbance in the field, while red and green color palettes reduce eye strain and prevent “thermal eyes” during extended use. Its 10mm exit pupil diameter provides optimal visibility at any angle.

Power is provided by a replaceable 18650 battery with reverse polarity support, allowing quick, worry-free swaps even at night. Despite its pocket-sized build (147×47×74mm, 375g with battery), the Lumi LRF includes photo, video, and audio recording, ballistic calculation, and 32GB internal memory, making it a truly mini but mighty thermal monocular.

KEY FEATURES

Optics & Imaging

• Sensor: 384px thermal, 12μm pixel pitch
• NETD: <18mK (high sensitivity for subtle details)
• Objective Lens: 35mm, F0.9 large aperture
• Optical Magnification: 4×
• Field of View: 13m × 10m @100m
• Angular FOV: 7.5° × 5.7°
• Maximum Detection Range: 1800m
• Display: 1024×768 AMOLED
• Exit Pupil: 10mm

Laser Rangefinder (LRF)

• Range: 800m
• Performance: Fast response, low latency
• Ballistic Calculation: Supported

Power & Battery

• Battery: Replaceable 18650
• Reverse Polarity: Supported (positive & negative supply)

Design & Durability

• Dimensions: 147 × 47 × 74mm
• Weight: 375g (with battery) / 335g (without battery)
• Protection: IP67 dustproof & waterproof rating
• Silent Operation: Yes

Features

• Recording: Photo, video, and audio (with mic)
• Internal Storage: 32GB
• Reality+ AI Algorithm: Image clarity & noise reduction
• Electronic Image Stabilization: Yes
• Color Palettes: Multiple, including red & green (anti-fatigue)
