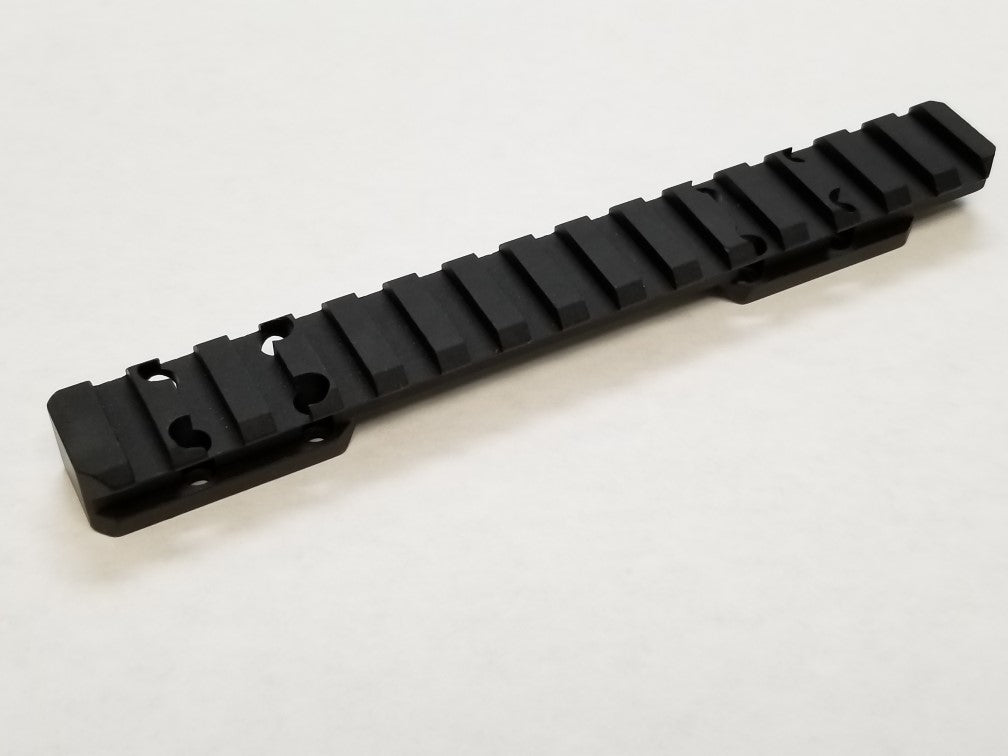

TALLEY PICATINNY BASE BROWNING X BOLT LONG ACTION
TALLEY PICATINNY BASE BROWNING X BOLT LONG ACTION is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Adventure Camping & Fishing offers the following shipping options via Australia Post:
- Free shipping for orders over $150
- Standard shipping: $15
Can't find what you're looking for? Give us a call on (03) 5722 4622.
TALLEY PICATINNY BASE BROWNING X BOLT LONG ACTION
Description
Description
Made in America, Talley Manufacturing’s Browning X-Bolt Picatinny Rails are machined entirely from high grade alloy and protected with a hard-coat anodizing to 65 Rockwell ensuring the craftsmanship of these Picatinny Rails last the lifetime of your firearm. The Browning X-Bolt Picatinny Rails are all designed and manufactured with precision to fit your firearm with the industry’s tightest manufacturing tolerances.
- American Made
- Fully CNC Machined
- High-Grade Lightweight Aircraft Aluminum
- Hard-Coat anodizing for durability
- MIL-STD-1913 Picatinny Rail specifications
- Designed to fit Browning X-Bolt series rifles.
- Includes mounting screws and wrench. (6-48 Screws / T15 wrench)
Browning X-Bolt Picatinny Rail – Product Dimensions and Weights
| Action | Rear Height (20MOA)1 | Hole2 1 ↔ 2 | Hole 2 ↔ 3 | Hole 3 ↔ 4 | Front Height (20MOA)1 | Overall Length | Weight |
| Super-Short Action | .500″ (.539″) | .700″ | 2.825″ | .700″ | .425″ (.435″) | 5.761″ | 1.9oz. |
| Short Action | .500″ (.537″) | .700″ | 2.942″ | .700″ | .425″ (.437″) | 6.155″ | 2.2oz. |
| Long Action | .500″ (.537″) | .700″ | 3.694″ | .700″ | .425″ (.433″) | 6.863″ | 2.4oz. |
| Magnum Action | .500″ (.539″) | .700″ | 3.930″ | .700″ | .425″ (.433″) | 6.965″ | 2.3oz. |
1 The height is measured at hole 1 and hole 4 ; from the top of the action to the top of the rail.
2 Hole 1 is closest to the shooter and hole 4 is closest to the muzzle. Picatinny Rail hole spacing measured center to center.
How to identify X-Bolt 1 or X-Bolt 2:
The newer X-Bolt 2 can be identified by the X-Bolt logo on the left hand side of the action. The original X-Bolt doe not have this logo
X-Bolt 1:
X-Bolt 2:
Note:
The Magnum rail is for magnum length actions. Current calibers in the magnum length action are .300 PRC, .300 RUM, & .375 H&H. The Super-Short Action is for the .223 Rem, .22-250 Rem, .223 WSSM & .243 WSSM
Torque Recommendations?
- Browning X-Bolt Picatinny Rail to Action: Torque can depend on the receiver. Please check with the rifle manufacturer (Browning) to verify allowable torque into receiver. Always make sure your torque wrench is calibrated, Talley Mfg is not responsible for damage caused to firearms due to over torquing.
